QListViewItem Class Reference

The QListViewItem class implements a list view item. More...

#include <qlistview.h>

Inherits Qt.

Inherited by QCheckListItem.

List of all member functions.

Public Members

Protected Members


Detailed Description

The QListViewItem class implements a list view item.

A list view item is a multi-column object capable of displaying itself in a QListView. Its design has the following main goals:

The easiest way to use QListViewItem is to construct one with a few constant strings. This creates an item that is a child of parent with two fixed-content strings, and discards the pointer to it:

    (void) new QListViewItem( parent, "first column", "second column" );


This object will be deleted when parent is deleted, as for QObjects.

The parent is either another QListViewItem or a QListView. If the parent is a QListView, this item is a top-level item within that QListView. If the parent is another QListViewItem, this item becomes a child of that list view item.

If you keep the pointer, you can set or change the texts using setText(), add pixmaps using setPixmap(), change its mode using setSelectable(), setSelected(), setOpen() and setExpandable(). You'll also be able to change its height using setHeight(), and traverse the tree. There's no need to retain the pointer however, since you can get a pointer to any QListViewItem in a QListView using QListView::selectedItem(), QListView::currentItem(), QListView::firstChild(), QListView::lastItem(), QListView::findItem().

QCheckListItems are list view items that have a checkbox or radio button and can be used in place of QListViewItems.

You can traverse the tree as if it were a doubly-linked list using itemAbove() and itemBelow(); they return pointers to the items directly above and below this item on the screen (even if none of the three are actually visible at the moment).

You can also traverse it as a tree by using parent(), firstChild(), and nextSibling().

Example:

    QListViewItem * myChild = myItem->firstChild();
    while( myChild ) {
        doSomething( myChild );
        myChild = myChild->nextSibling();
    }


There is also an interator class to traverse a tree of list view items. To iterate over all items of a list view, do the following:

    QListViewItemIterator it( listview );
    for ( ; it.current(); ++it )
      doSomething( it.current() ); // it.current() is a QListViewItem*


Note that the order of the children will change when the sorting order changes and is undefined if the items are not visible. You can, however, call enforceSortOrder() at any time; QListView will always call it before it needs to show an item.

Many programs will need to reimplement QListViewItem. The most commonly reimplemented functions are:

Some subclasses call setExpandable(TRUE) even when they have no children, and populate themselves when setup() or setOpen(TRUE) is called. The dirview/dirview.cpp example program uses this technique to start up quickly: The files and subdirectories in a directory aren't inserted into the tree until they're actually needed.

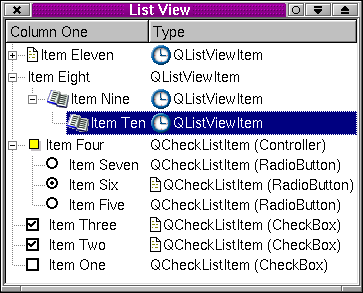

List View Items

See also QCheckListItem, QListView and Advanced Widgets.


Member Function Documentation

QListViewItem::QListViewItem ( QListView * parent )

Constructs a new top-level list view item in the QListView parent.

QListViewItem::QListViewItem ( QListViewItem * parent )

Constructs a new list view item that is a child of parent and first in the parent's list of children.

QListViewItem::QListViewItem ( QListView * parent, QListViewItem * after )

Constructs an empty list view item that is a child of parent and is after after in the parent's list of children. Since parent is a QListView the item will be a top-level item.

QListViewItem::QListViewItem ( QListViewItem * parent, QListViewItem * after )

Constructs an empty list view item that is a child of parent and is after after in the parent's list of children.

QListViewItem::QListViewItem ( QListView * parent, QString label1, QString label2 = QString::null, QString label3 = QString::null, QString label4 = QString::null, QString label5 = QString::null, QString label6 = QString::null, QString label7 = QString::null, QString label8 = QString::null )

Constructs a new list view item in the QListView parent, parent, with up to eight constant strings label1, label2, label3, label4, label5, label6, label7 and label8 defining its column contents.

See also setText().

QListViewItem::QListViewItem ( QListViewItem * parent, QString label1, QString label2 = QString::null, QString label3 = QString::null, QString label4 = QString::null, QString label5 = QString::null, QString label6 = QString::null, QString label7 = QString::null, QString label8 = QString::null )

Constructs a new list view item as a child of the QListViewItem parent with optional constant strings label1, label2, label3, label4, label5, label6, label7 and label8 as column contents.

See also setText().

QListViewItem::QListViewItem ( QListView * parent, QListViewItem * after, QString label1, QString label2 = QString::null, QString label3 = QString::null, QString label4 = QString::null, QString label5 = QString::null, QString label6 = QString::null, QString label7 = QString::null, QString label8 = QString::null )

Constructs a new list view item in the QListView parent that is included after item after and can contain up to eight column texts label1, label2, label3, label4, label5, label6, label7 andlabel8.

Note that the order is changed according to QListViewItem::key() unless the list view's sorting is disabled using QListView::setSorting( -1 ).

See also setText().

QListViewItem::QListViewItem ( QListViewItem * parent, QListViewItem * after, QString label1, QString label2 = QString::null, QString label3 = QString::null, QString label4 = QString::null, QString label5 = QString::null, QString label6 = QString::null, QString label7 = QString::null, QString label8 = QString::null )

Constructs a new list view item as a child of the QListViewItem parent. It is inserted after item after and may contain up to eight strings label1, label2, label3, label4, label5, label6, label7 and label8 as column entries.

Note that the order is changed according to QListViewItem::key() unless the list view's sorting is disabled using QListView::setSorting( -1 ).

See also setText().

QListViewItem::~QListViewItem () [virtual]

Destroys the item, deleting all its children and freeing up all allocated resources.

bool QListViewItem::acceptDrop ( const QMimeSource * mime ) const [virtual]

Returns TRUE if the item can accept drops of type QMimeSource mime; otherwise returns FALSE.

The default implementation does nothing and returns FALSE. A subclass must reimplement this to accept drops.

void QListViewItem::activate () [virtual protected]

This virtual function is called whenever the user clicks on this item or presses Space on it.

See also activatedPos().

Reimplemented in QCheckListItem.

bool QListViewItem::activatedPos ( QPoint & pos ) [protected]

When called from a reimplementation of activate(), this function gives information on how the item was activated. Otherwise the behavior is undefined.

If activate() was caused by a mouse press, the function sets pos to where the user clicked and returns TRUE; otherwise it returns FALSE and does not change pos.

pos is relative to the top-left corner of this item.

We recommend not using this function; it is scheduled to become obsolete.

See also activate().

void QListViewItem::cancelRename ( int col ) [virtual protected]

This function is called if the user cancels in-place renaming of this item in column col.

See also okRename().

int QListViewItem::childCount () const

Returns how many children this item has.

int QListViewItem::compare ( QListViewItem * i, int col, bool ascending ) const [virtual]

Compares this listview item to i using the column col in ascending order. Returns -1 if this item is less than i, 0 if they are equal and 1 if this item is greater than i.

This function is used for sorting.

The default implementation compares the item keys (key()) using QString::localeAwareCompare(). A reimplementation may use different values and a different comparison function. Here is a reimplementation that uses plain Unicode comparison:

    int MyListViewItem::compare( QListViewItem *i, int col,
                                 bool ascending ) const
    {
        return key( col, ascending ).compare( i->key(col, ascending) );
    }

We don't recommend using ascending so your code can safely ignore it.

See also key(), QString::localeAwareCompare() and QString::compare().

Example: network/ftpclient/ftpview.cpp.

int QListViewItem::depth () const

Returns the depth of this item.

Example: dirview/dirview.cpp.

bool QListViewItem::dragEnabled () const

Returns TRUE if this item can be dragged; otherwise returns FALSE.

See also setDragEnabled().

void QListViewItem::dragEntered () [virtual protected]

This method is called when a drag entered the item's bounding rectangle.

The default implementation does nothing, subclasses may need to reimplement this method.

void QListViewItem::dragLeft () [virtual protected]

This method is called when a drag left the item's bounding rectangle.

The default implementation does nothing, subclasses may need to reimplement this method.

bool QListViewItem::dropEnabled () const

Returns TRUE if this item accepts drops; otherwise returns FALSE.

See also setDropEnabled() and acceptDrop().

void QListViewItem::dropped ( QDropEvent * e ) [virtual protected]

This method is called when something was dropped on the item. e contains all the information about the drop.

The default implementation does nothing, subclasses may need to reimplement this method.

void QListViewItem::enforceSortOrder () const [virtual protected]

Makes sure that this object's children are sorted appropriately.

This works only if every item from the root item down to this item is already sorted.

See also sortChildItems().

QListViewItem * QListViewItem::firstChild () const

Returns a pointer to the first (top) child of this item, or a null pointer if this item has no children.

Note that the children are not guaranteed to be sorted properly. QListView and QListViewItem try to postpone or avoid sorting to the greatest degree possible, in order to keep the user interface snappy.

See also nextSibling().

Example: checklists/checklists.cpp.

int QListViewItem::height () const

Returns the height of this item in pixels. This does not include the height of any children; totalHeight() returns that.

void QListViewItem::insertItem ( QListViewItem * newChild ) [virtual]

Inserts newChild into this list view item's list of children. You should not need to call this function; it is called automatically by the constructor of newChild.

void QListViewItem::invalidateHeight () [virtual]

Invalidates the cached total height of this item, including all open children.

See also setHeight(), height() and totalHeight().

bool QListViewItem::isEnabled () const

Returns TRUE if this item is enabled; otherwise returns FALSE.

See also setEnabled().

bool QListViewItem::isExpandable () const

Returns TRUE if this item is expandable even when it has no children; otherwise returns FALSE.

bool QListViewItem::isOpen () const

Returns TRUE if this list view item has children and they are potentially visible. Returns FALSE if the item has no children or they are hidden.

See also setOpen().

bool QListViewItem::isSelectable () const

Returns TRUE if the item is selectable (as it is by default); otherwise returns FALSE

See also setSelectable().

bool QListViewItem::isSelected () const

Returns TRUE if this item is selected; otherwise returns FALSE.

See also setSelected(), QListView::setSelected() and QListView::selectionChanged().

Example: listviews/listviews.cpp.

bool QListViewItem::isVisible () const

Returns TRUE if the item is visible; otherwise returns FALSE.

See also setVisible().

QListViewItem * QListViewItem::itemAbove ()

Returns a pointer to the item immediately above this item on the screen. This is usually the item's closest older sibling, but it may also be its parent or its next older sibling's youngest child, or something else if anyoftheabove->height() returns 0. Returns a null pointer if there is no item immediately above this item.

This function assumes that all parents of this item are open (i.e. that this item is visible, or can be made visible by scrolling).

See also itemBelow() and QListView::itemRect().

QListViewItem * QListViewItem::itemBelow ()

Returns a pointer to the item immediately below this item on the screen. This is usually the item's eldest child, but it may also be its next younger sibling, its parent's next younger sibling, grandparent's, etc., or something else if anyoftheabove->height() returns 0. Returns a null pointer if there is no item immediately below this item.

This function assumes that all parents of this item are open (i.e. that this item is visible or can be made visible by scrolling).

See also itemAbove() and QListView::itemRect().

Example: dirview/dirview.cpp.

int QListViewItem::itemPos () const

Returns the y coordinate of this item in the list view's coordinate system. This function is normally much slower than QListView::itemAt(), but it works for all items whereas QListView::itemAt() normally only works for items on the screen.

See also QListView::itemAt(), QListView::itemRect() and QListView::itemPos().

QString QListViewItem::key ( int column, bool ascending ) const [virtual]

Returns a key that can be used for sorting by column column. The default implementation returns text(). Derived classes may also incorporate the order indicated by ascending into this key, although this is not recommended.

If you want to sort on non-alphabetical data, e.g. dates, numbers, etc., reimplement compare().

See also compare() and sortChildItems().

QListView * QListViewItem::listView () const

Returns a pointer to the list view containing this item.

void QListViewItem::moveItem ( QListViewItem * after )

Moves this item after the item after. This means it will get the sibling exactly after the item after. To move an item in the hierarchy, use takeItem() and insertItem().

bool QListViewItem::multiLinesEnabled () const

Returns TRUE if the item can display multiple lines of text; otherwise returns FALSE.

QListViewItem * QListViewItem::nextSibling () const

Returns a pointer to the sibling item below this item, or a null pointer if there is no sibling item after this item.

Note that the siblings are not guaranteed to be sorted properly. QListView and QListViewItem try to postpone or avoid sorting to the greatest degree possible, in order to keep the user interface snappy.

See also firstChild().

Example: xml/tagreader-with-features/structureparser.cpp.

void QListViewItem::okRename ( int col ) [virtual protected]

This function is called if the user presses Enter during in-place renaming of the item in column col.

See also cancelRename().

void QListViewItem::paintBranches ( QPainter * p, const QColorGroup & cg, int w, int y, int h ) [virtual]

Paints a set of branches from this item to (some of) its children.

Painter p is set up with clipping and translation so that you can draw only in the rectangle you need to; cg is the color group to use; the update rectangle is at (0, 0) and has size width w by height h. The top of the rectangle you own is at y (which is never greater than 0 but can be outside the window system's allowed coordinate range).

The update rectangle is in an undefined state when this function is called; this function must draw on all of the pixels.

See also paintCell() and QListView::drawContentsOffset().

void QListViewItem::paintCell ( QPainter * p, const QColorGroup & cg, int column, int width, int align ) [virtual]

This virtual function paints the contents of one column of an item and aligns it as described by align.

p is a QPainter open on the relevant paint device. p is translated so (0, 0) is the top-left pixel in the cell and width-1, height()-1 is the bottom-right pixel in the cell. The other properties of p (pen, brush, etc) are undefined. cg is the color group to use. column is the logical column number within the item that is to be painted; 0 is the column which may contain a tree.

This function may use QListView::itemMargin() for readability spacing on the left and right sides of data such as text, and should honor isSelected() and QListView::allColumnsShowFocus().

If you reimplement this function, you should also reimplement width().

The rectangle to be painted is in an undefined state when this function is called, so you must draw on all the pixels. The painter p has the right font on entry.

See also paintBranches() and QListView::drawContentsOffset().

Example: listviews/listviews.cpp.

Reimplemented in QCheckListItem.

void QListViewItem::paintFocus ( QPainter * p, const QColorGroup & cg, const QRect & r ) [virtual]

Paints a focus indication on the rectangle r using painter p and colors cg.

p is already clipped.

See also paintCell(), paintBranches() and QListView::allColumnsShowFocus.

Reimplemented in QCheckListItem.

QListViewItem * QListViewItem::parent () const

Returns a pointer to the parent of this item, or a null pointer if this item has no parent.

See also firstChild() and nextSibling().

Example: dirview/dirview.cpp.

const QPixmap * QListViewItem::pixmap ( int column ) const [virtual]

Returns a pointer to the pixmap for column, or a null pointer if there is no pixmap for column.

See also setText() and setPixmap().

Examples: dirview/dirview.cpp and network/ftpclient/ftpview.cpp.

void QListViewItem::removeItem ( QListViewItem * item ) [virtual]

This function is obsolete. It is provided to keep old source working. We strongly advise against using it in new code.

This function has been renamed takeItem().

bool QListViewItem::renameEnabled ( int col ) const

Returns TRUE if this item can be in-place renamed in column col; otherwise returns FALSE.

void QListViewItem::repaint () const

Repaints this item on the screen if it is currently visible.

Example: addressbook/centralwidget.cpp.

int QListViewItem::rtti () const [virtual]

Returns 0.

Make your derived classes return their own values for rtti(), and you can distinguish between listview items. You should use values greater than 1000 preferably a large random number, to allow for extensions to this class.

Reimplemented in QCheckListItem.

void QListViewItem::setDragEnabled ( bool allow ) [virtual]

If allow is TRUE, the listview starts a drag (see QListView::dragObject()) when the user presses and moves the mouse on this item.

void QListViewItem::setDropEnabled ( bool allow ) [virtual]

If allow is TRUE, the listview accepts drops onto the item; otherwise drops are not allowed..

void QListViewItem::setEnabled ( bool b ) [virtual]

If b is TRUE the item is enabled; otherwise it is disabled. Disabled items are drawn grayed-out and are not accessable by the user.

void QListViewItem::setExpandable ( bool enable ) [virtual]

Sets this item to be expandable even if it has no children if enable is TRUE, and to be expandable only if it has children if enable is FALSE (the default).

The dirview example uses this in the canonical fashion. It checks whether the directory is empty in setup() and calls setExpandable(TRUE) if not; in setOpen() it reads the contents of the directory and inserts items accordingly. This strategy means that dirview can display the entire file system without reading very much at startup.

Note that root items are not expandable by the user unless QListView::setRootIsDecorated() is set to TRUE.

See also setSelectable().

void QListViewItem::setHeight ( int height ) [virtual protected]

Sets this item's height to height pixels. This implicitly changes totalHeight(), too.

Note that a font change causes this height to be overwritten unless you reimplement setup().

For best results in Windows style we suggest using an even number of pixels.

See also height(), totalHeight() and isOpen().

void QListViewItem::setMultiLinesEnabled ( bool b ) [virtual]

If b is TRUE items may contain multiple lines of text; otherwise they may only contain a single line.

void QListViewItem::setOpen ( bool o ) [virtual]

Opens or closes an item, i.e. shows or hides an item's children.

If o is TRUE all child items are shown initially. The user can hide them by clicking the - icon to the left of the item. If o is FALSE, the children of this item are initially hidden. The user can show them by clicking the + icon to the left of the item.

See also height(), totalHeight() and isOpen().

Examples: checklists/checklists.cpp, dirview/dirview.cpp, dirview/main.cpp, fileiconview/mainwindow.cpp and xml/tagreader-with-features/structureparser.cpp.

void QListViewItem::setPixmap ( int column, const QPixmap & pm ) [virtual]

Sets the pixmap in column column to pm, if pm is non-null and different from the current pixmap, and if column is non-negative.

See also pixmap() and setText().

Example: dirview/dirview.cpp.

void QListViewItem::setRenameEnabled ( int col, bool b ) [virtual]

If b is TRUE, this item can be in-place renamed in the column col by the user, otherwise it is not possible.

void QListViewItem::setSelectable ( bool enable ) [virtual]

Sets this items to be selectable if enable is TRUE (the default) or not to be selectable if enable is FALSE.

The user is not able to select a non-selectable item using either the keyboard or mouse. The application programmer still can, e.g. using setSelected().

See also isSelectable().

Example: network/ftpclient/ftpview.cpp.

void QListViewItem::setSelected ( bool s ) [virtual]

If s is TRUE this item is selected; otherwise it is deselected.

This function does not maintain any invariants or repaint anything -- QListView::setSelected() does that.

See also height() and totalHeight().

Example: addressbook/centralwidget.cpp.

void QListViewItem::setText ( int column, const QString & text ) [virtual]

Sets the text in column column to text, if column is a valid column number and text is different from the existing text.

If text() has been reimplemented, this function may be a no-op.

See also text() and key().

Examples: addressbook/centralwidget.cpp and xml/outliner/outlinetree.cpp.

void QListViewItem::setVisible ( bool b )

If b is TRUE, the item is made visible; otherwise it is hidden.

If the item is not visible, itemAbove() and itemBelow() will never hit this item, although you still can reach it by using e.g. the QListViewItemIterator.

void QListViewItem::setup () [virtual]

This virtual function is called before the first time QListView needs to know the height or any other graphical attribute of this object, and whenever the font, GUI style, or colors of the list view change.

The default calls widthChanged() and sets the item's height to the height of a single line of text in the list view's font. (If you use icons, multi-line text, etc., you will probably need to call setHeight() yourself or reimplement it.)

Example: dirview/dirview.cpp.

void QListViewItem::sort () [virtual]

(Re)sorts all child items of this item using the last sorting configuration (sort column and direction).

See also enforceSortOrder().

void QListViewItem::sortChildItems ( int column, bool ascending ) [virtual]

Sorts the children of this item using column column. This is done in ascending order if ascending is TRUE and in descending order if ascending is FALSE.

Asks some of the children to sort their children. (QListView and QListViewItem ensure that all on-screen objects are properly sorted but may avoid or defer sorting other objects in order to be more responsive.)

See also key() and compare().

void QListViewItem::startRename ( int col ) [virtual]

If in-place renaming of this item is enabled (see renameEnabled()), this function starts renaming the item in cloumn col, by creating and initializing an edit box.

void QListViewItem::takeItem ( QListViewItem * item ) [virtual]

Removes item from this object's list of children and causes an update of the screen display. The item is not deleted. You should normally not need to call this function because QListViewItem::~QListViewItem() calls it.

The normal way to delete an item is delete.

If you need to move an item from one place in the hierarchy to another you can use takeItem() to remove the item from the list view and then insertItem() to put the item back in its new position.

Warning: This function leaves item and its children in a state where most member functions are unsafe. Only a few functions work correctly on an item in this state, most notably insertItem(). The functions that work on detached items are explicitly documented as such.

See also QListViewItem::insertItem().

QString QListViewItem::text ( int column ) const [virtual]

Returns the text in column column, or a null string if there is no text in that column.

See also key() and paintCell().

Examples: addressbook/centralwidget.cpp, dirview/dirview.cpp and network/ftpclient/ftpview.cpp.

int QListViewItem::totalHeight () const

Returns the total height of this object, including any visible children. This height is recomputed lazily and cached for as long as possible.

Functions which can affect the total height are, setHeight() which is used to set an item's height, setOpen() to show or hide an item's children, and invalidateHeight() to invalidate the cached height.

See also height().

int QListViewItem::width ( const QFontMetrics & fm, const QListView * lv, int c ) const [virtual]

Returns the number of pixels of width required to draw column c of list view lv, using the metrics fm without cropping. The list view containing this item may use this information depending on the QListView::WidthMode settings for the column.

The default implementation returns the width of the bounding rectangle of the text of column c.

See also listView(), widthChanged(), QListView::setColumnWidthMode() and QListView::itemMargin.

void QListViewItem::widthChanged ( int c = -1 ) const

Call this function when the value of width() may have changed for column c. Normally, you should call this if text(c) changes. Passing -1 for c indicates that all columns may have changed. For efficiency, you should do this if more than one call to widthChanged() is required.

See also width().


This file is part of the Qt toolkit. Copyright © 1995-2002 Trolltech. All Rights Reserved.


Copyright © 2002 TrolltechTrademarks
Qt version 3.0.5
